Network Representation, Queries, and Manipulation#

To understand how to query and manipulate the network, we’ll first cover the various forms of network representation. Specifically, OpenPNM uses an adjacency matrix to represent topology, but occasionally invokes the incidence matrix since this makes it easier for some queries.

import openpnm as op
import numpy as np
import matplotlib.pyplot as plt
op.visualization.set_mpl_style()

The Adjacency Matrix#

The basic adjacency matrix is an Np-by-Np array of 1’s and 0’s, where a 1 in location [i, j] indicates that pores i and j are connected. Consider a simple network:

pn = op.network.Cubic(shape=[3, 2, 1], connectivity=26)

It’s adjacency matrix can be generated as follows:

am = pn.create_adjacency_matrix().todense()
print(am)
[[0 1 1 1 0 0]
 [1 0 1 1 0 0]
 [1 1 0 1 1 1]
 [1 1 1 0 1 1]
 [0 0 1 1 0 1]
 [0 0 1 1 1 0]]

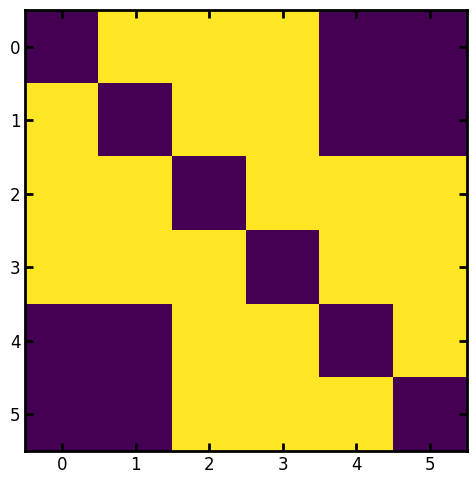

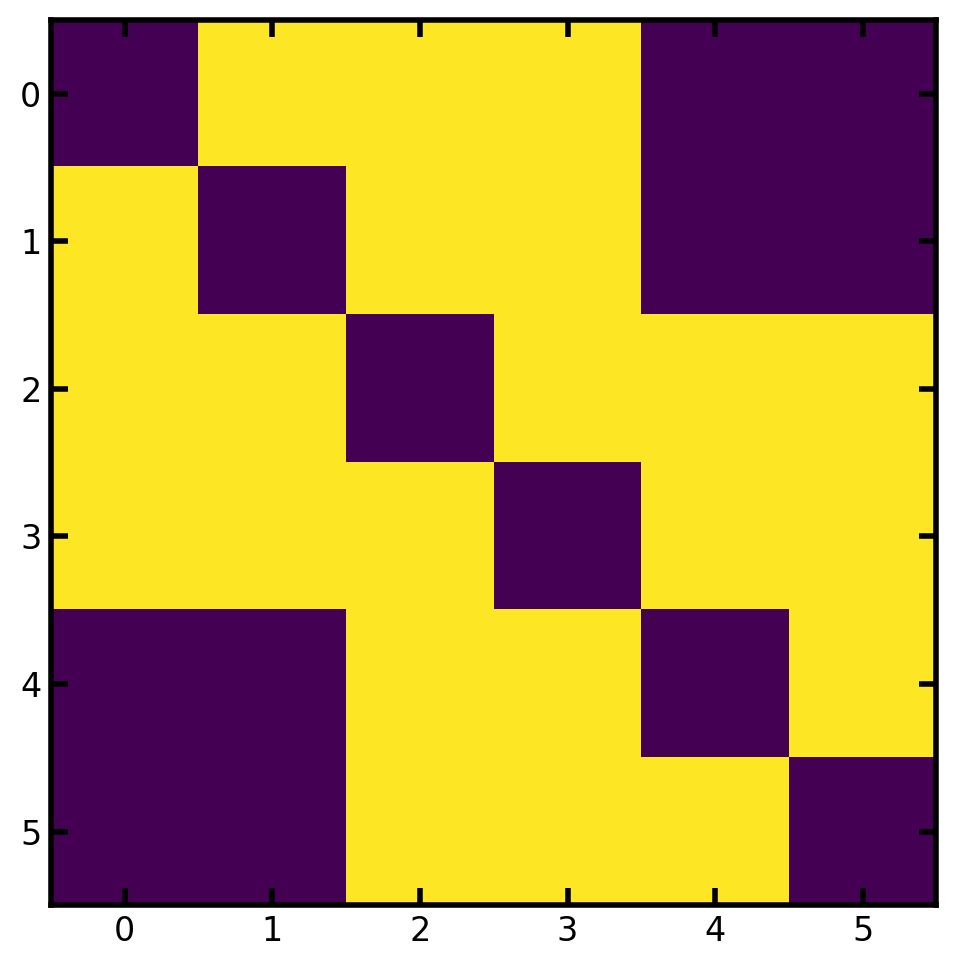

The adjacency matrix can also be plotted as an image for a helpful visualization:

fig, ax = plt.subplots(1, 1, figsize=[5, 5])
ax.imshow(am);

There are a few notable features to point out:

  • The matrix is symmetrical, since pore i connects to j and j connects to i

  • Each row contains only a few entries since a given pore only has a few neighbors. It may not be obvious above since the network is small, but as the network grows to millions of pores, each pore only has on the order of 10 neighbors.

  • You can find which pores are neighbors of pore i by finding the locations on non-zeros in row i of the adjacency matrix

  • No entries are found in the diagonal since this would indicate that a pore connects with itself which is not physically meaningful.

  • Since each pair of pores is connected by a single throat then each nonzero entry in the matrix corresponds to a throat

COO Sparse Format#

The fact that each row contains very few entries suggests that the matrix should be represented with a sparse format. This is especially important when we start to consider networks with millions of pores which would require a very large amount of memory to store an array of mostly 0’s. The most intuitive sparse storage scheme is the COOrdinate format. Since the matrix is symmetrical, we only need to store the upper (or lower) triangular part. This gives:

am = pn.create_adjacency_matrix(triu=True)
print(am)
<COOrdinate sparse matrix of dtype 'int64'
	with 11 stored elements and shape (6, 6)>
  Coords	Values
  (0, 1)	1
  (2, 3)	1
  (4, 5)	1
  (0, 2)	1
  (1, 3)	1
  (2, 4)	1
  (3, 5)	1
  (0, 3)	1
  (2, 5)	1
  (1, 2)	1
  (3, 4)	1

The first two columns are the pore indices of the connected pores. The third column is the value stored in the matrix, which in the standard adjacency matrix is 1. However, it is convenient to note throat indices are defined by this list, meaning that pores 0 and 1 are connected by throat 0, pores 2 and 3 are connected by throat 1, and so on. Putting the throat indices into the adjacency matrix gives:

am = pn.create_adjacency_matrix(weights=pn.Ts, triu=True)
print(am)
<COOrdinate sparse matrix of dtype 'int64'
	with 11 stored elements and shape (6, 6)>
  Coords	Values
  (0, 1)	0
  (2, 3)	1
  (4, 5)	2
  (0, 2)	3
  (1, 3)	4
  (2, 4)	5
  (3, 5)	6
  (0, 3)	7
  (2, 5)	8
  (1, 2)	9
  (3, 4)	10

Warning

Python’s 0-indexing become problematic here since the first throat is labelled 0, which technically is a ‘non-entry’ in a sparse matrix. Scipy’s sparse storage schemes are able to handle this because they only look at which locations are defined as non-zeros (i.e., the left column), but it’s worth keeping in mind when working with these sparse representations since it can lead to problems.

Other Sparse Formats#

The COO format described above is the basis for OpenPNMs data storage; however, it is not very suitable for performing “queries” such as which pores are neighbors to pore i? In fact, the only query that can be performed directly with the COO format is to find which pores are connected by throat k, which is just the (i, j) values on row k. Luckily, there are several other sparse formats we can use. The “List of Lists” format is quite useful.

We can look for the locations of nonzeros, which tells us which pores are connected to pore i:

am = pn.create_adjacency_matrix(weights=pn.Ts, fmt='lil', triu=False)
for locations_of_nonzeros in am.rows:
    print(locations_of_nonzeros)
[1, 2, 3]
[0, 2, 3]
[0, 1, 3, 4, 5]
[0, 1, 2, 4, 5]
[2, 3, 5]
[2, 3, 4]

Note that we are looking at the symmetrical version of this array since we want to see all connections for each pore.

Or we can look at the values of the nonzeros, which tells us which throats are connected to pore i:

for values_of_nonzeros in am.data:
    print(values_of_nonzeros)
[0, 3, 7]
[0, 9, 4]
[3, 9, 1, 5, 8]
[7, 4, 1, 10, 6]
[5, 10, 2]
[8, 6, 2]

Another query we might wish to do is determine which throat connects which pair of pores. The “Dictionary of Keys” format is useful for this. It is basically the COO format, but the (i, j) values are used as the dictionary keys. This is helpful since dictionary lookups are actually quite fast thanks to some sophisticated data structures used by python. Consider the following:

am = pn.create_adjacency_matrix(weights=pn.Ts, fmt='dok', triu=False)
print('pores (0, 1):', am[(0, 1)])
pores (0, 1): 0

One gotcha with this approach is that if you request the throat that connects two pores which are not connected, then it returns 0, which makes sense if the adjacency matrix is filled with 1’s and 0’s, but when throat indices are used as the weights, then 0 is a valid throat number, so receiving a 0 back from a query does not indicate lack of connection. This can be remedied by adding 1 to the throat indices when generating the adjacency matrix, then subtracting 1 again to return the actual throat number:

am = pn.create_adjacency_matrix(weights=pn.Ts+1, fmt='dok', triu=False)
print('pores (5, 5):', am[(5, 5)]-1)
pores (5, 5): -1

The Incidence Matrix#

The incidence matrix is a slight variation on the adjacency matrix, but is it tells us which pore is connected to which throat. In other words, it is an Np-by-Nt array, with a nonzero value at location [i, k] indicating that pore i is connected to throat k. It looks like:

im = pn.create_incidence_matrix().todense()
print(im)
[[1 0 0 1 0 0 0 1 0 0 0]
 [1 0 0 0 1 0 0 0 0 1 0]
 [0 1 0 1 0 1 0 0 1 1 0]
 [0 1 0 0 1 0 1 1 0 0 1]
 [0 0 1 0 0 1 0 0 0 0 1]
 [0 0 1 0 0 0 1 0 1 0 0]]

We can see that finding the locations of nonzeros values in row i tells us which throats are connected to pore i. This is the same information we can get from the COO format of the adjacency matrix. The incidence matrix is thus not really helpful.

Using OpenPNM Methods Query Methods#

The above introduction was meant to provide some background on how neighbor queries are performed “behind the scenes”, but it is not very convenient to use those approaches directly. Instead, you can use the methods included in OpenPNM, specifically, the methods attached to the Network class:

pn = op.network.Cubic(shape=[4, 4, 1])

Let’s start by finding all pores on the ‘left’ and ‘bottom’. These labels are predefined on Cubic networks, and we can use the pores method to find all pores with these labels:

P_left = pn.pores('left')
P_bottom = pn.pores('back')
print(P_left)
print(P_bottom)
[0 1 2 3]
[ 3  7 11 15]

Find Neighoring Pores#

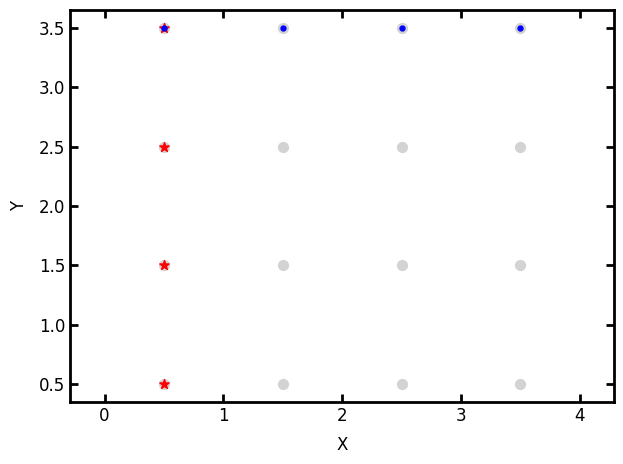

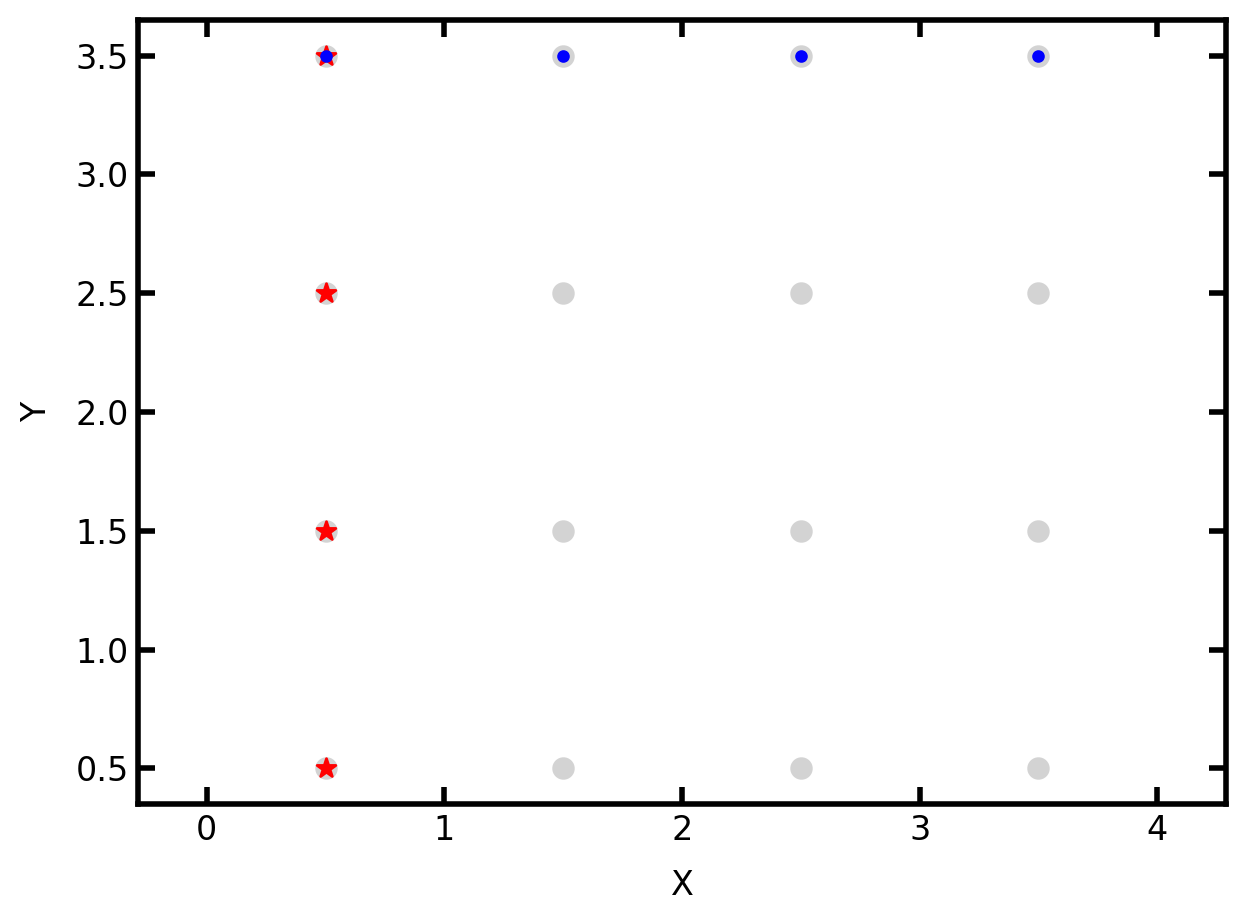

We now have two sets of pores that actually overlap each other, as illustrated below:

fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P_left, c='red', marker='*',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P_bottom, c='blue', marker='.',
                                  markersize=50, ax=ax);

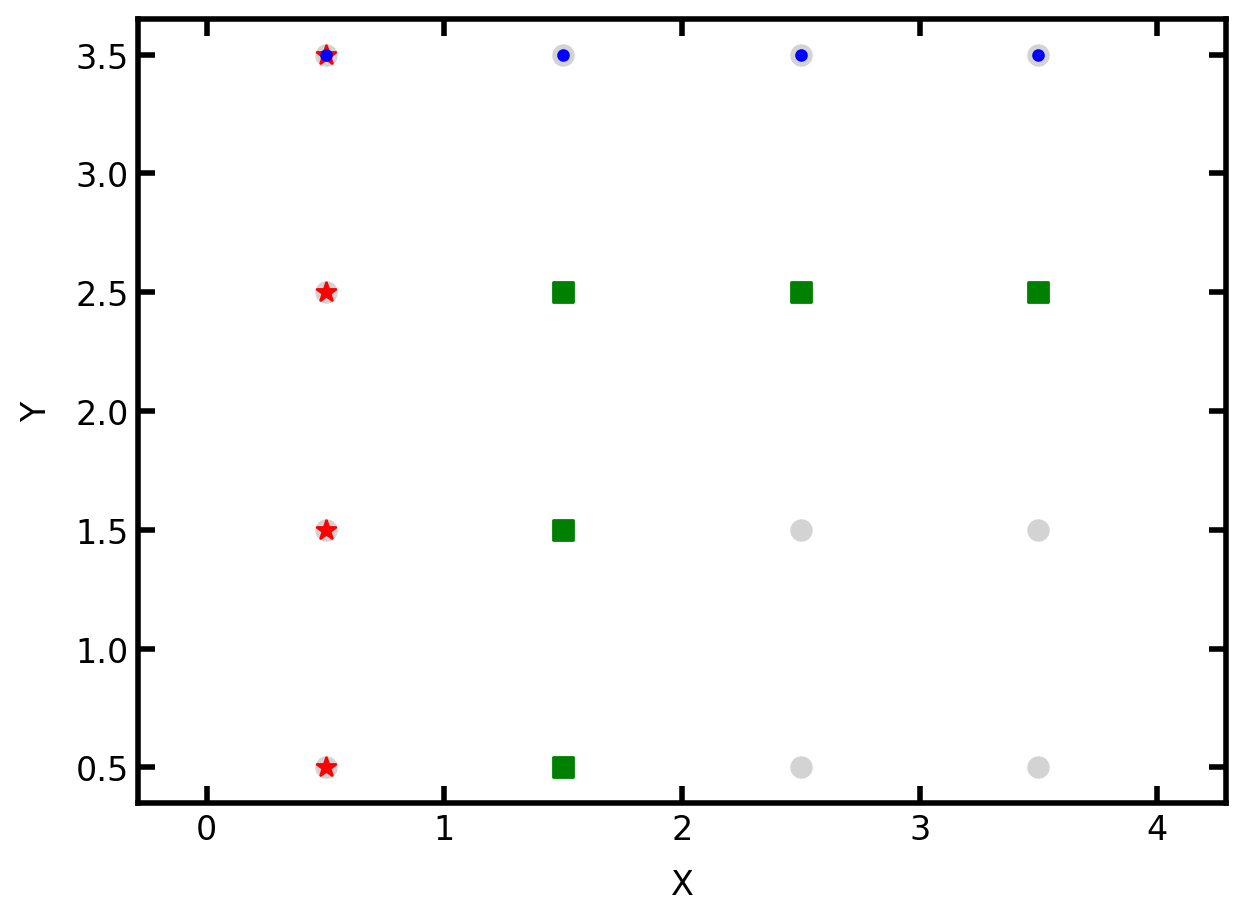

mode='or' finds all pores with one or more connections to the input pores

Given a set of pores, find the pores that are neighbors to one or more of the inputs. This is called OR since it gives the neighbors of either the bottom pores or the left pores, or both.

Ps = pn.pores(['left', 'back'])
print(Ps)
Ps = pn.find_neighbor_pores(pores=Ps, mode='or')
print(Ps)
[ 0  1  2  3  7 11 15]
[ 4  5  6 10 14]
fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P_left, c='red',
                                  markersize=50, marker='*', ax=ax)
op.visualization.plot_coordinates(pn, P_bottom, c='blue',
                                  markersize=50, marker='.', ax=ax)
op.visualization.plot_coordinates(pn, Ps, c='green',
                                  markersize=50, marker='s', ax=ax);

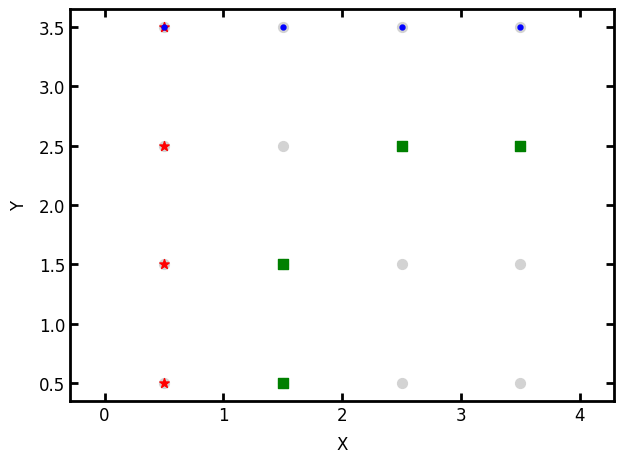

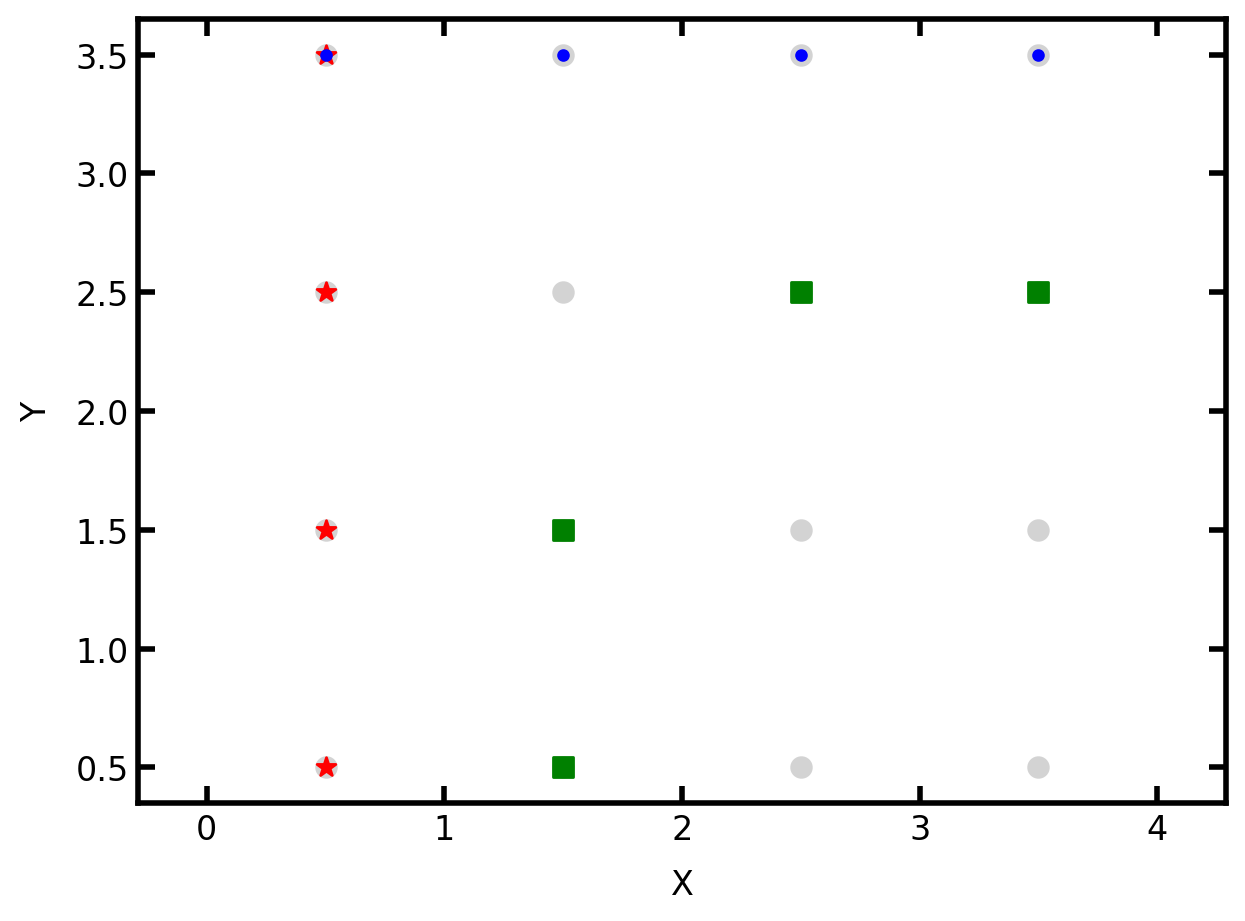

`mode=’xor’ finds all pores with exactly one connection to the input pores

Given a set of pores find the pores that are neighbors of one and only one of the input pores. This is called XOR, or ‘exclusive_or’ because it finds the pores that are neigbhors to the ‘bottom’ or the ‘left’, but not both.

Ps = pn.pores(['left', 'back'])
print(Ps)
Ps = pn.find_neighbor_pores (pores=Ps, mode='xor')
print(Ps)
[ 0  1  2  3  7 11 15]
[ 4  5 10 14]
fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P_left, c='red',
                                  markersize=50, marker='*', ax=ax)
op.visualization.plot_coordinates(pn, P_bottom, c='blue',
                                  markersize=50, marker='.', ax=ax)
op.visualization.plot_coordinates(pn, Ps, c='green',
                                  markersize=50, marker='s', ax=ax);

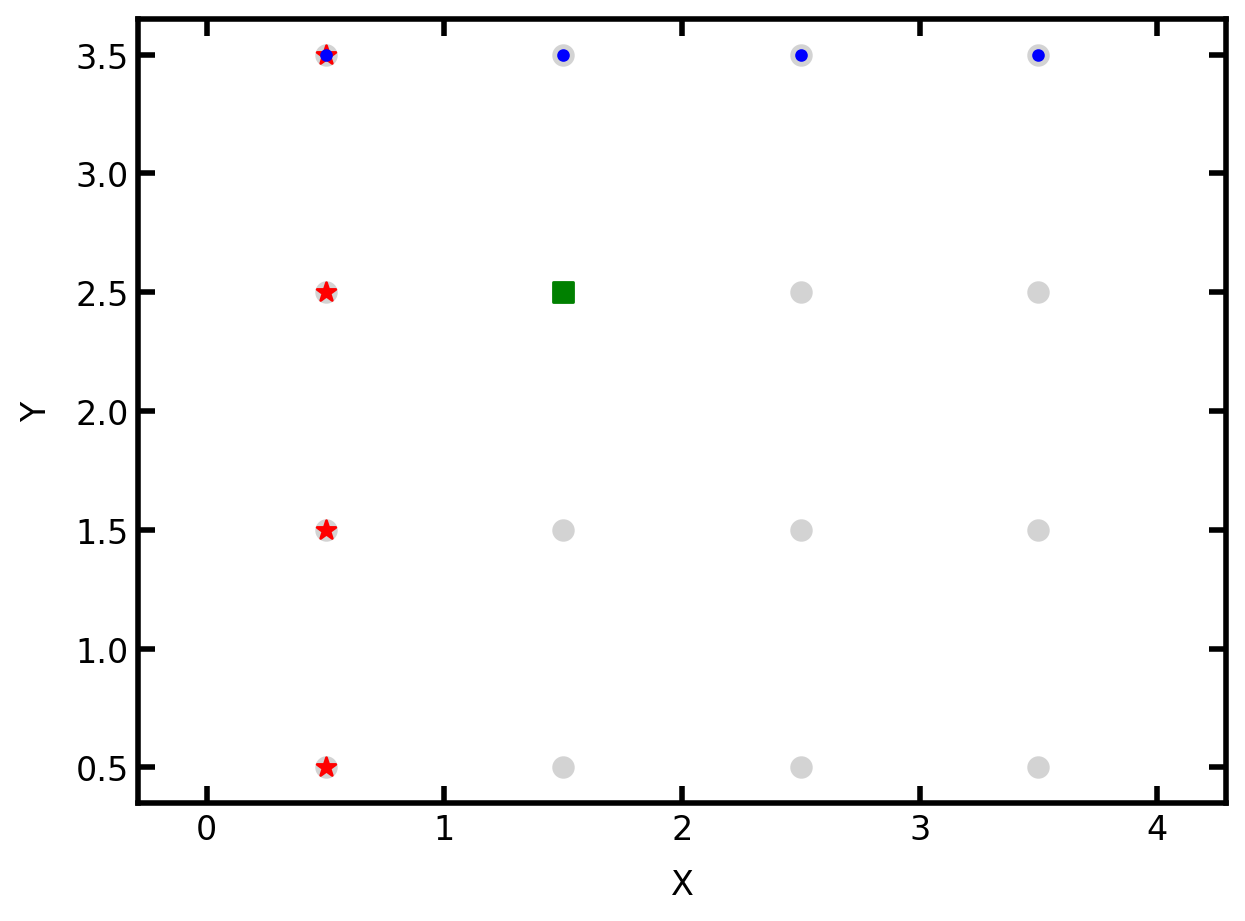

mode='xnor' finds all the pores with 2 or more connections to the input pores

This finds pores that are common to both ‘left’ and ‘bottom’ pores. It is called XNOR since it is the opposite of XOR , indicated by the N for not . Note that XNOR and NXOR are interchangeable.

Ps = pn.pores(['left', 'back'])
print(Ps)
Ps = pn.find_neighbor_pores(pores=Ps, mode='xnor')
print(Ps)
[ 0  1  2  3  7 11 15]
[6]
fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P_left, c='red',
                                  markersize=50, marker='*', ax=ax)
op.visualization.plot_coordinates(pn, P_bottom, c='blue',
                                  markersize=50, marker='.', ax=ax)
op.visualization.plot_coordinates(pn, Ps, c='green',
                                  markersize=50, marker='s', ax=ax);

Find Neighboring Throats#

Neighbor throat queries follow essentially the same logic as the neighboring queries outlined above.

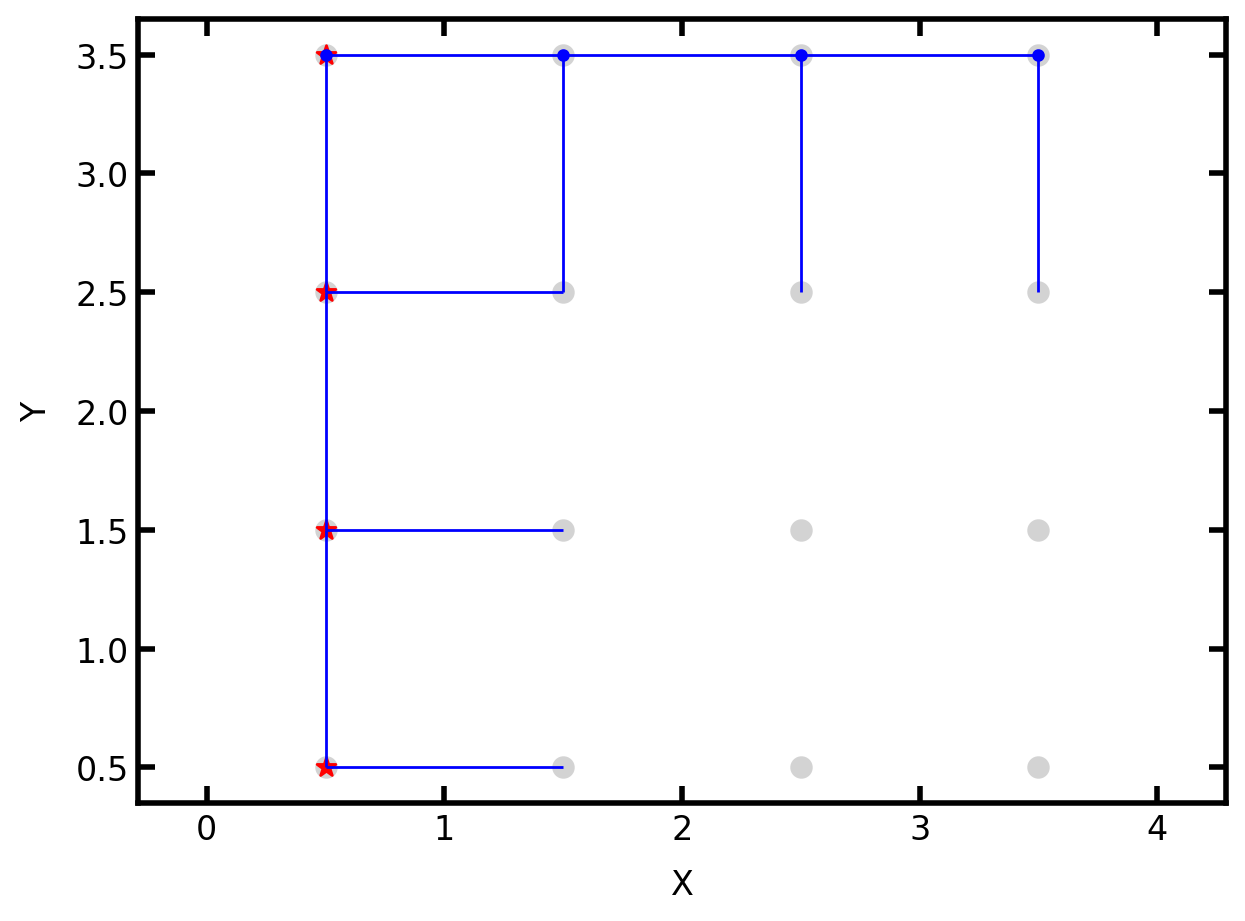

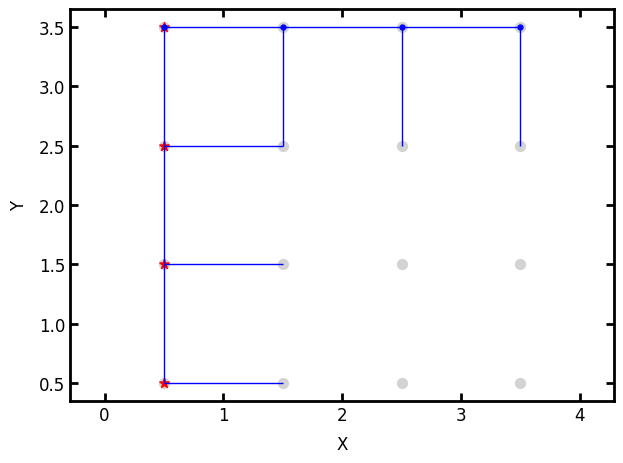

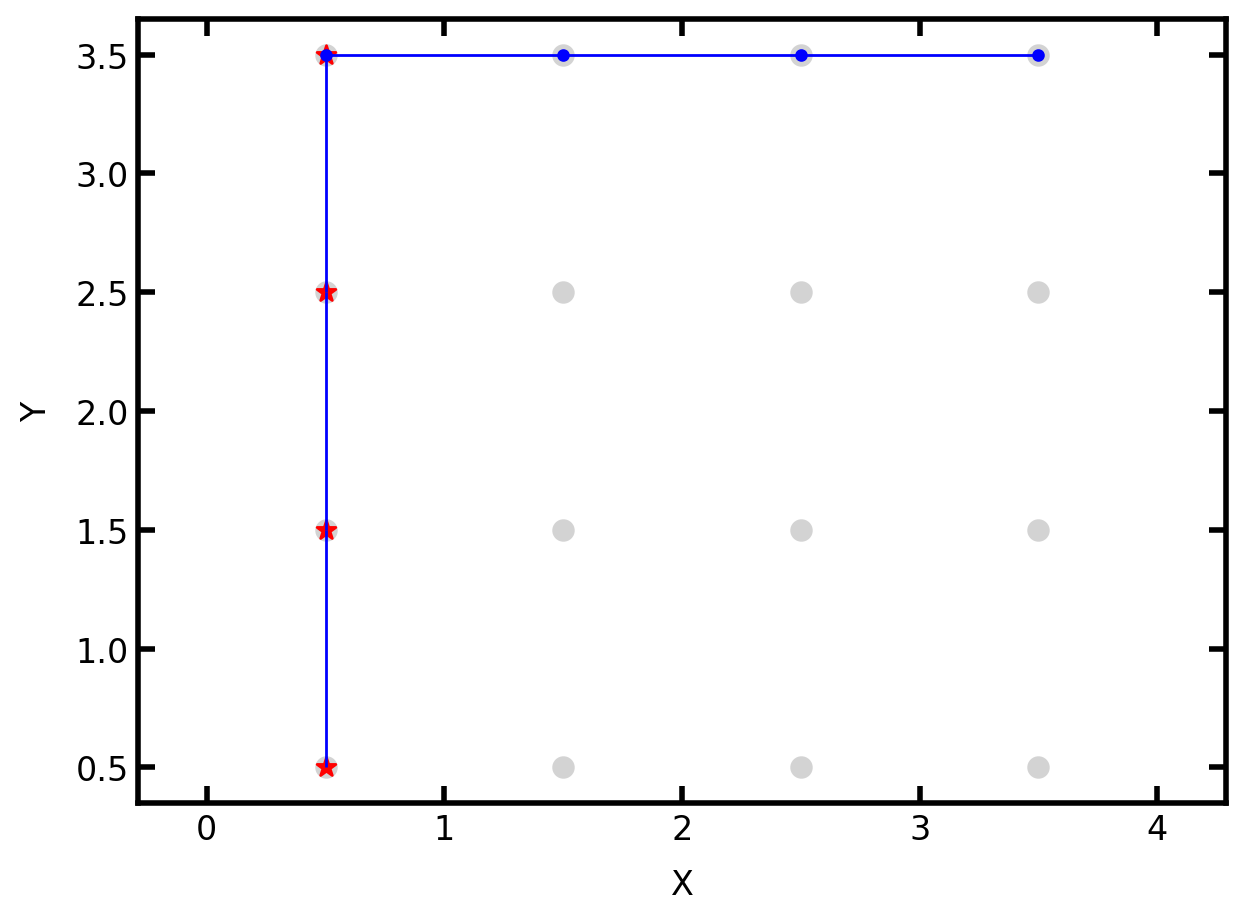

mode='or' finds all throats connected to any of the input pores:

Ps = pn.pores(['left', 'back'])
Ts = pn.find_neighbor_throats(pores=Ps, mode='or')
fig, ax = plt.subplots()
op.visualization.plot_connections(pn, Ts, ax=ax)
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P_left, c='red',
                                  markersize=50, marker='*', ax=ax)
op.visualization.plot_coordinates(pn, P_bottom, c='blue',
                                  markersize=50, marker='.', ax=ax);

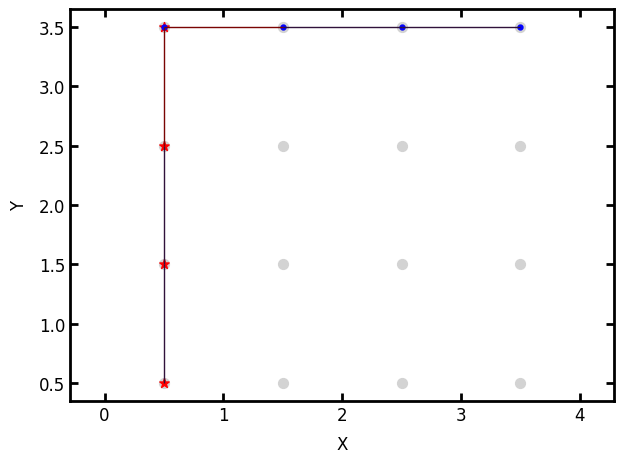

`mode=’xnor’ finds throats shared by input pores only

Ps = pn.pores(['left', 'back'])
Ts = pn.find_neighbor_throats(pores=Ps, mode='xnor')
fig, ax = plt.subplots()
op.visualization.plot_connections(pn, Ts, ax=ax)
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P_left, c='red',
                                  markersize=50, marker='*', ax=ax)
op.visualization.plot_coordinates(pn, P_bottom, c='blue',
                                  markersize=50, marker='.', ax=ax);

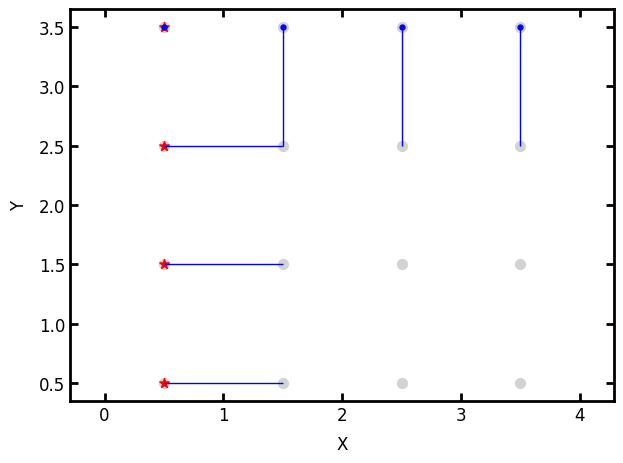

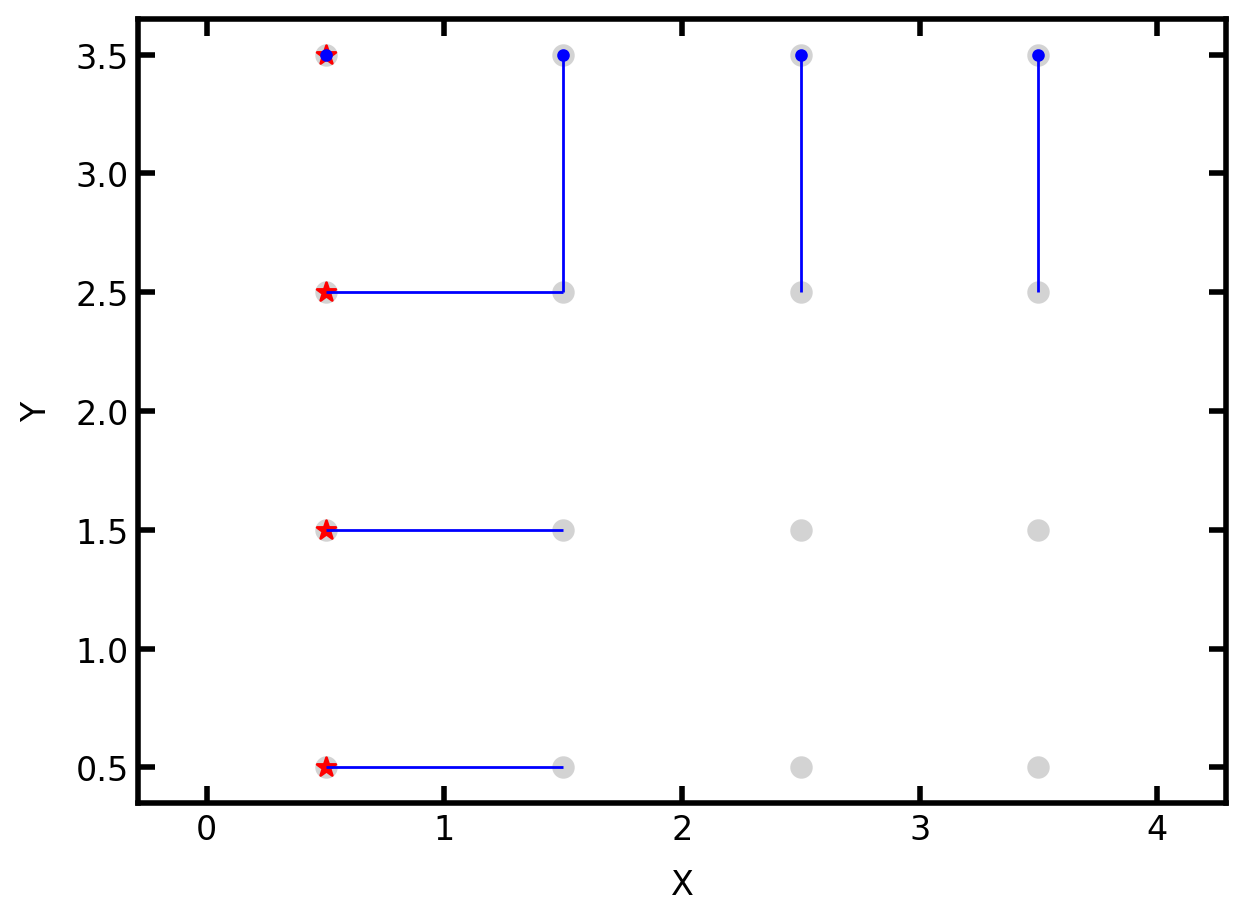

mode=xor finds throats that are only connected to one input pore

Ps = pn.pores(['left', 'back'])
Ts = pn.find_neighbor_throats(pores=Ps, mode='xor')
fig, ax = plt.subplots()
op.visualization.plot_connections(pn, Ts, ax=ax)
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P_left, c='red',
                                  markersize=50, marker='*', ax=ax)
op.visualization.plot_coordinates(pn, P_bottom, c='blue',
                                  markersize=50, marker='.', ax=ax);

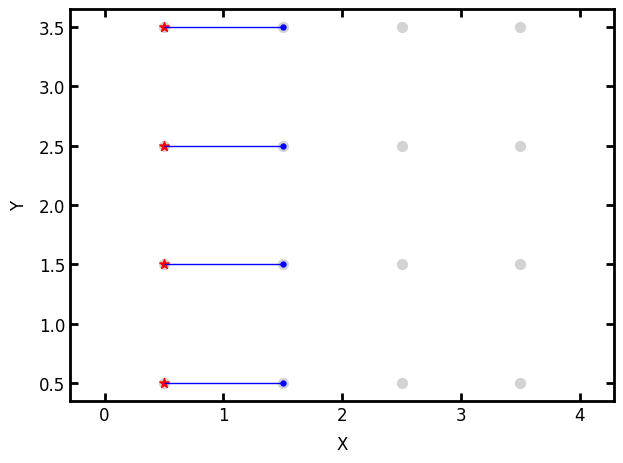

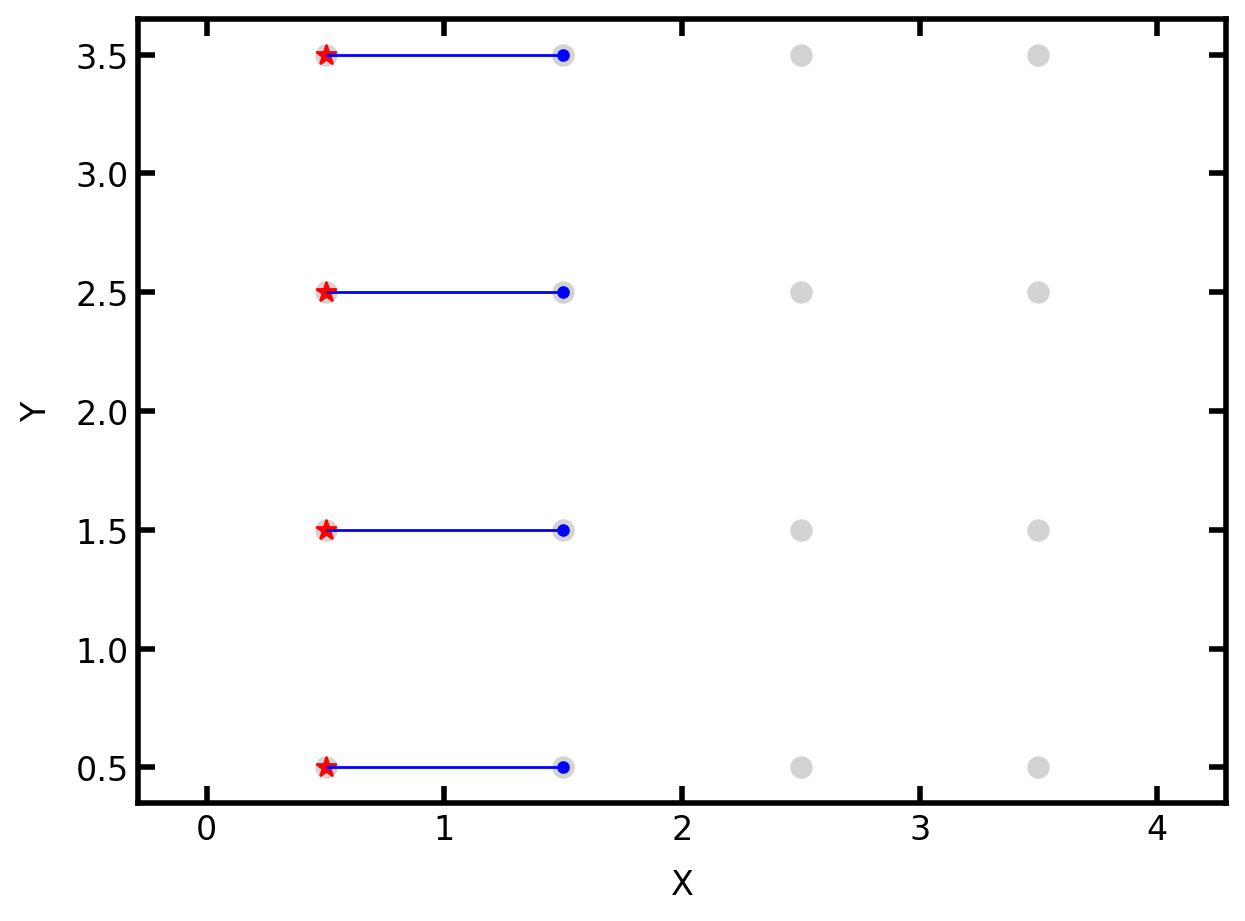

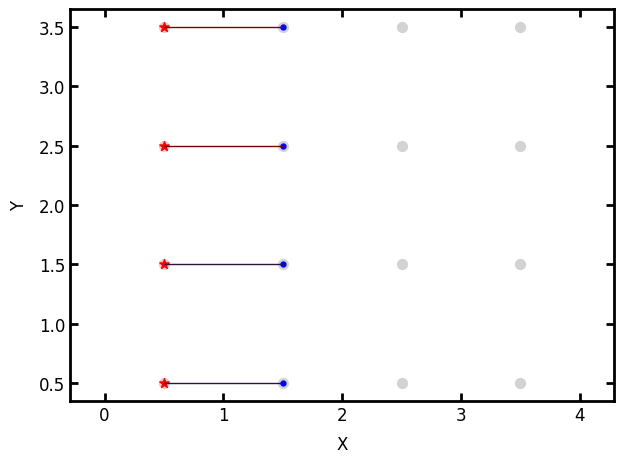

Find Connecting Throats#

Given two sets of pores, it is possible to find which throats connects them using the find_connecting_throats:

P1 = [0, 1, 2, 3]
P2 = [4, 5, 6, 7]
Ts = pn.find_connecting_throat(P1, P2)
print(Ts)
[12 13 14 15]
fig, ax = plt.subplots()
op.visualization.plot_connections(pn, Ts, ax=ax)
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_coordinates(pn, P1, c='red',
                                  markersize=50, marker='*', ax=ax)
op.visualization.plot_coordinates(pn, P2, c='blue',
                                  markersize=50, marker='.', ax=ax);

This function assumes that P1 and P2 are lined up, so that finds the connections between each pore i. If there are no connections, then nans are returned (which also means that any valid connections are converted to float):

P1 = [0, 1, 2, 3]
P2 = [7, 7, 7, 7]
Ts = pn.find_connecting_throat(P1, P2)
print(Ts)
[nan nan nan 15.]

Find Connected Pores#

Given a list of throats, finding which pores are on either end can be done using the find_connected_pores method or by looking at pn['throat.conns'] directly.

Ps = pn.find_connected_pores(throats=[0, 1, 2])
print(Ps)
[[0 1]
 [1 2]
 [2 3]]
Ps = pn['throat.conns'][[0, 1, 2]]
print(Ps)
[[0 1]
 [1 2]
 [2 3]]

It is often desired to have a single column of pore indices and to remove duplications. This can be done with np.unique:

print(np.unique(Ps))
[0 1 2 3]

The find_connected_pores method has a flatten argument which does the same thing:

Ps = pn.find_connected_pores(throats=[0, 1, 2], flatten=True)
print(Ps)
[0 1 2 3]

Removing Throats#

Removing throats may be useful for a number of reasons such as making a cubic network more heterogeneous, or to study the effect of blockages on flow. Throat deletion is actually trivial and requires simply removing the row(s) corresponding to the to-be deleted throats from all throat arrays. For instance, let’s manually delete throats 0 and 3:

pn = op.network.Cubic(shape=[3, 2, 1])
print(pn)
══════════════════════════════════════════════════════════════════════════════
net : <openpnm.network.Cubic at 0x7fb0f345ffb0>
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Properties                                                   Valid Values
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.coords                                                         6 / 6
  3  throat.conns                                                        7 / 7
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Labels                                                 Assigned Locations
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.xmin                                                               2
  3  pore.xmax                                                               2
  4  pore.ymin                                                               3
  5  pore.ymax                                                               3
  6  pore.surface                                                            6
  7  throat.surface                                                          7
  8  pore.left                                                               2
  9  pore.right                                                              2
 10  pore.front                                                              3
 11  pore.back                                                               3
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――

We can see that there are only two arrays which contain throat data, so we need to remove rows 0 and 3 from these. The easiest way to this this actually to “keep” the rows we want:

mask = np.ones(pn.Nt, dtype=bool)
mask[[0, 3]] = False
pn['throat.conns'] = pn['throat.conns'][mask]
pn['throat.surface'] = pn['throat.surface'][mask]
print(pn)
══════════════════════════════════════════════════════════════════════════════
net : <openpnm.network.Cubic at 0x7fb0f345ffb0>
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Properties                                                   Valid Values
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.coords                                                         6 / 6
  3  throat.conns                                                        5 / 5
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Labels                                                 Assigned Locations
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.xmin                                                               2
  3  pore.xmax                                                               2
  4  pore.ymin                                                               3
  5  pore.ymax                                                               3
  6  pore.surface                                                            6
  7  throat.surface                                                          5
  8  pore.left                                                               2
  9  pore.right                                                              2
 10  pore.front                                                              3
 11  pore.back                                                               3
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――

If any phases have been defined then they need to be handled as well. OpenPNM includes a function to trim throats from networks, which handles any complications:

op.topotools.trim(network=pn, throats=[0, 3])
print(pn)
══════════════════════════════════════════════════════════════════════════════
net : <openpnm.network.Cubic at 0x7fb0f345ffb0>
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Properties                                                   Valid Values
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.coords                                                         6 / 6
  3  throat.conns                                                        3 / 3
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Labels                                                 Assigned Locations
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.xmin                                                               2
  3  pore.xmax                                                               2
  4  pore.ymin                                                               3
  5  pore.ymax                                                               3
  6  pore.surface                                                            6
  7  throat.surface                                                          3
  8  pore.left                                                               2
  9  pore.right                                                              2
 10  pore.front                                                              3
 11  pore.back                                                               3
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――

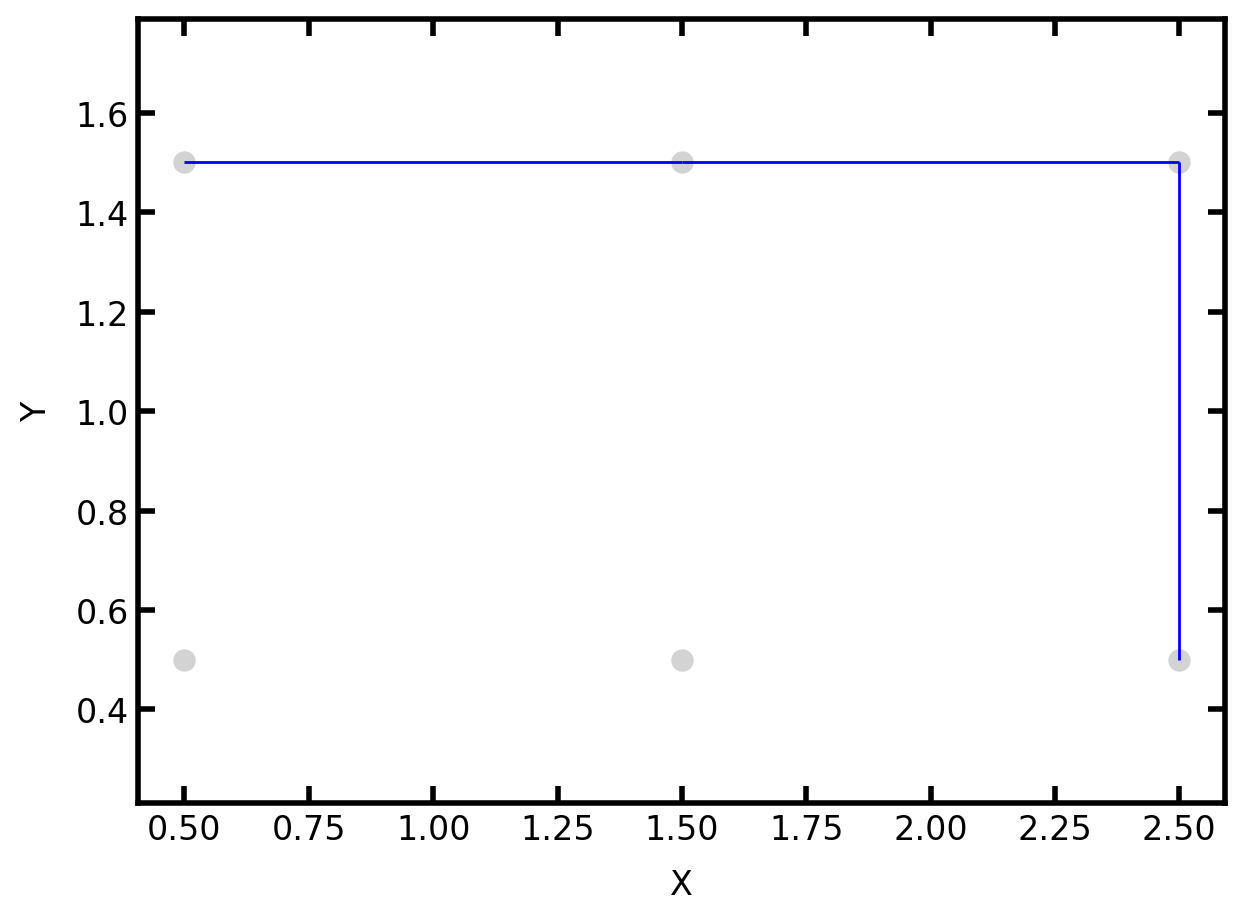

Visualizing the network shows that throats are indeed missing, and also that some pores are now isolated which is a problem for numerical computations.

fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, pn.Ps, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_connections(pn, ax=ax);

Removing Pores#

Removing pores is almost as easy as removing throats, with two significant complications.

  1. When a pore is removed, the values in the 'throat.conns' array must be updated. If pore 2 is removed, the pore 3 becomes the new pore 2. This means that any throats which were pointing to pore 3 (i.e. [1, 3]) must now be updated to point to pore 2 instead (i.e. [1, 2]). This can be done manually as shown below, but OpenPNM’s trim function should be used.

  2. A throat cannot point to nothing, so when a pore is deleted, all of its neighboring throats must also be deleted.

First we’ll see how to do this manually, then we’ll demonstrate the trim function, this time for pores.

The first step is to create an array of 0’s with 1’s in the locations to be trimmed:

pn = op.network.Cubic(shape=[3, 2, 1])
totrim = np.zeros(pn.Np, dtype=int)
totrim[[2, 4]] = 1
print(totrim)
[0 0 1 0 1 0]

We now compute the cumulative sum of this array which will then contain values indicating by how much each index should be adjusted

offset = np.cumsum(totrim)
print(offset)
[0 0 1 1 2 2]

Lastly we create an array that can be used to remap the throat connections:

remap = pn.Ps - offset
print(remap)
[0 1 1 2 2 3]

Before we proceed with deleting the pores we must first delete the throats. Luckily this is easy, we just need to identify the neighboring throats, the use trim:

Ts = pn.find_neighbor_throats(pores=[2, 4])
op.topotools.trim(pn, throats=Ts)

Now we can delete pores 2 and 4 as we did with throats above:

mask = np.ones(pn.Np, dtype=bool)
mask[[2, 4]] = False
for k, v in pn.items():
    if k.startswith('pore.'):
        pn[k] = v[mask]
print(pn)
══════════════════════════════════════════════════════════════════════════════
net : <openpnm.network.Cubic at 0x7fb0f3683740>
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Properties                                                   Valid Values
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.coords                                                         4 / 4
  3  throat.conns                                                        3 / 3
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Labels                                                 Assigned Locations
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.xmin                                                               2
  3  pore.xmax                                                               1
  4  pore.ymin                                                               1
  5  pore.ymax                                                               3
  6  pore.surface                                                            4
  7  throat.surface                                                          3
  8  pore.left                                                               2
  9  pore.right                                                              1
 10  pore.front                                                              1
 11  pore.back                                                               3
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――

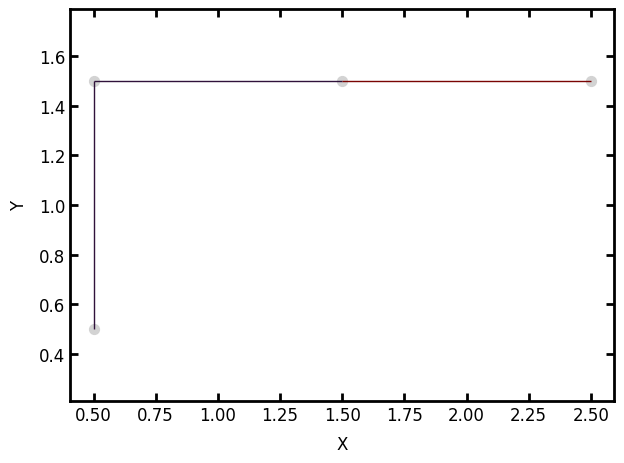

Lastly we must remap the throat conns:

pn['throat.conns'] = remap[pn['throat.conns']]
fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_connections(pn, ax=ax);

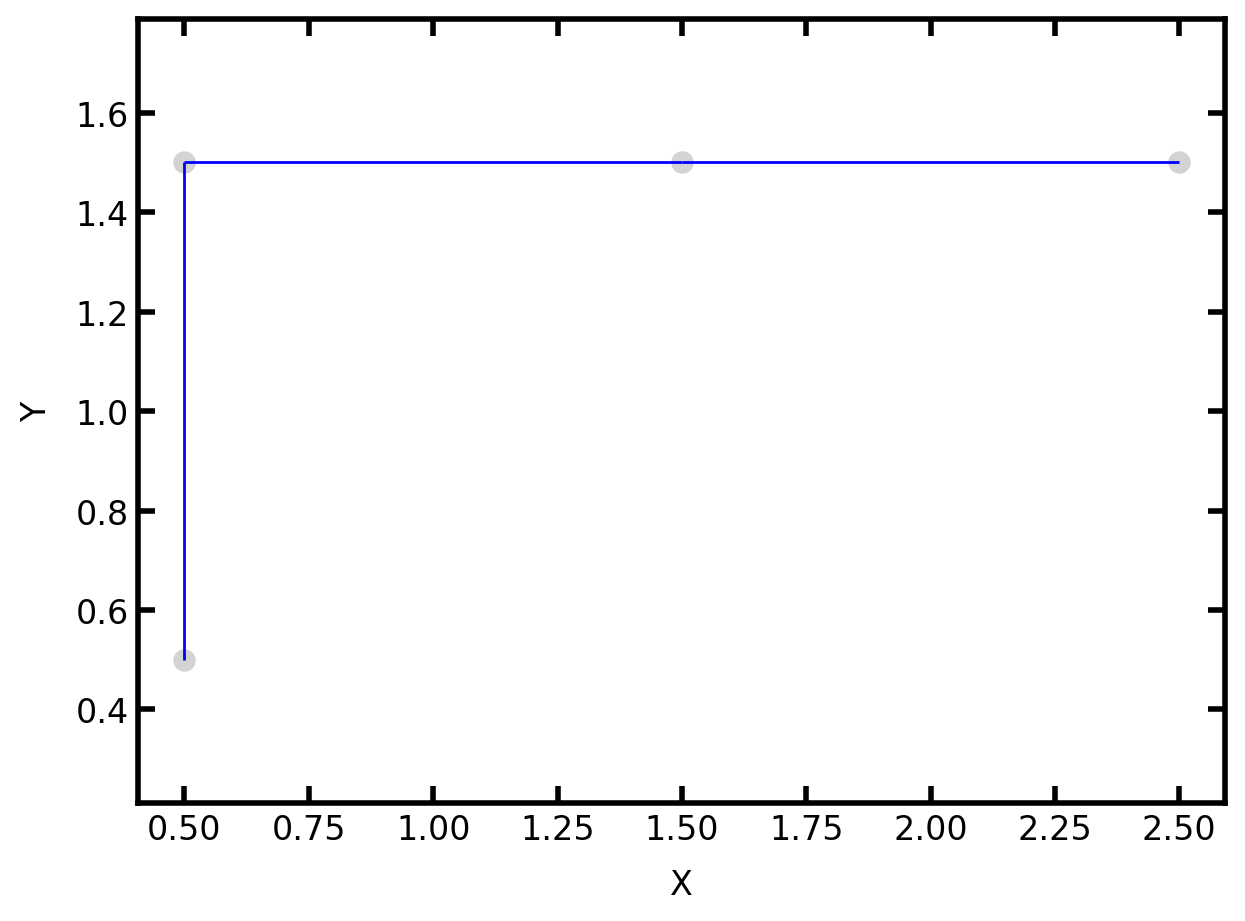

Of course, the easy way is just to use trim directly:

pn = op.network.Cubic(shape=[3, 2, 1])
op.topotools.trim(network=pn, pores=[2, 4])
fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_connections(pn, ax=ax);

Adding Pores and Throats#

Adding pores and throats can also be done by hand, but there is one significant complication: when you add a pore or throat, a decision must be made about what values to put into these new locations for all the arrays that already exist.

This can be done manually as follows:

pn = op.network.Cubic(shape=[3, 2, 1])
new_pores = [[1.5, 2.5, 0.5], [3, 1, 0.5]]
coords = np.vstack((pn['pore.coords'], new_pores))
pn['pore.coords'] = coords
print(pn)
══════════════════════════════════════════════════════════════════════════════
net : <openpnm.network.Cubic at 0x7fb0f3785670>
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Properties                                                   Valid Values
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.coords                                                         8 / 8
  3  throat.conns                                                        7 / 7
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  #  Labels                                                 Assigned Locations
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――
  2  pore.xmin                                                               2
  3  pore.xmax                                                               2
  4  pore.ymin                                                               3
  5  pore.ymax                                                               3
  6  pore.surface                                                            6
  7  throat.surface                                                          7
  8  pore.left                                                               2
  9  pore.right                                                              2
 10  pore.front                                                              3
 11  pore.back                                                               3
――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――

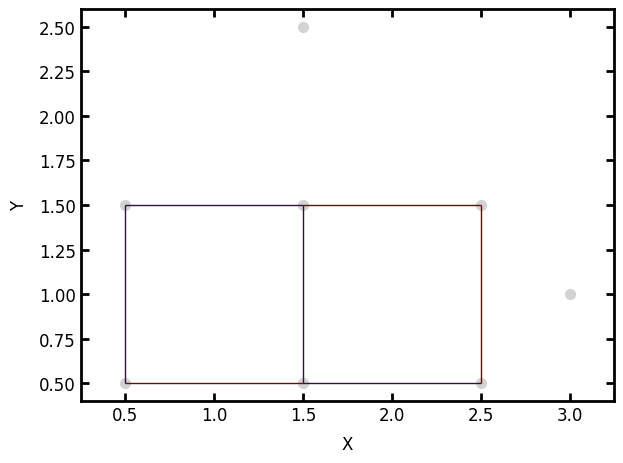

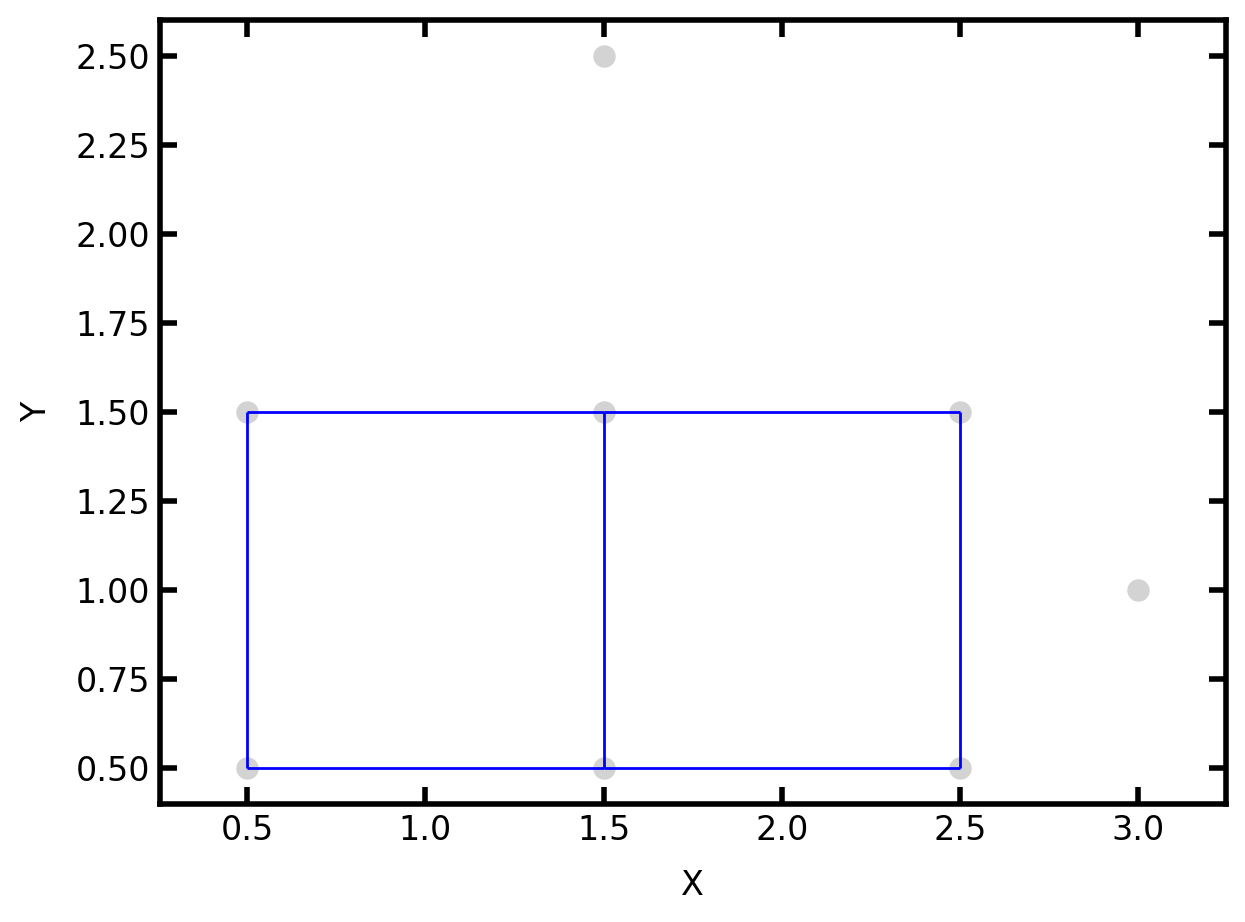

We must now extend the length of all the pore arrays as well. We are lucky in this case that only labels are present. This means we know the shape of of the arrays (i.e. Np-by-1) and we know that False is probably the correct value to put into the new locations:

for k in pn.labels():
    if k.startswith('pore.'):
        pn[k] = np.hstack((pn[k], [False, False]))
fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_connections(pn, ax=ax);

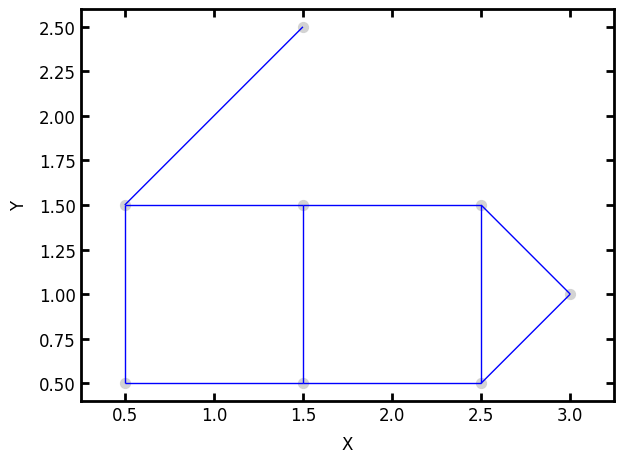

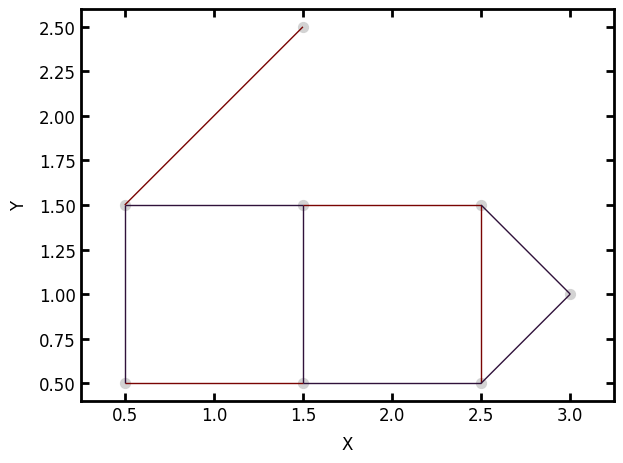

Now let’s add throats to these new pores:

new_conns = [[1, 6], [4, 7], [5, 7]]
conns = np.vstack((pn['throat.conns'], new_conns))
pn['throat.conns'] = conns
fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_connections(pn, ax=ax);

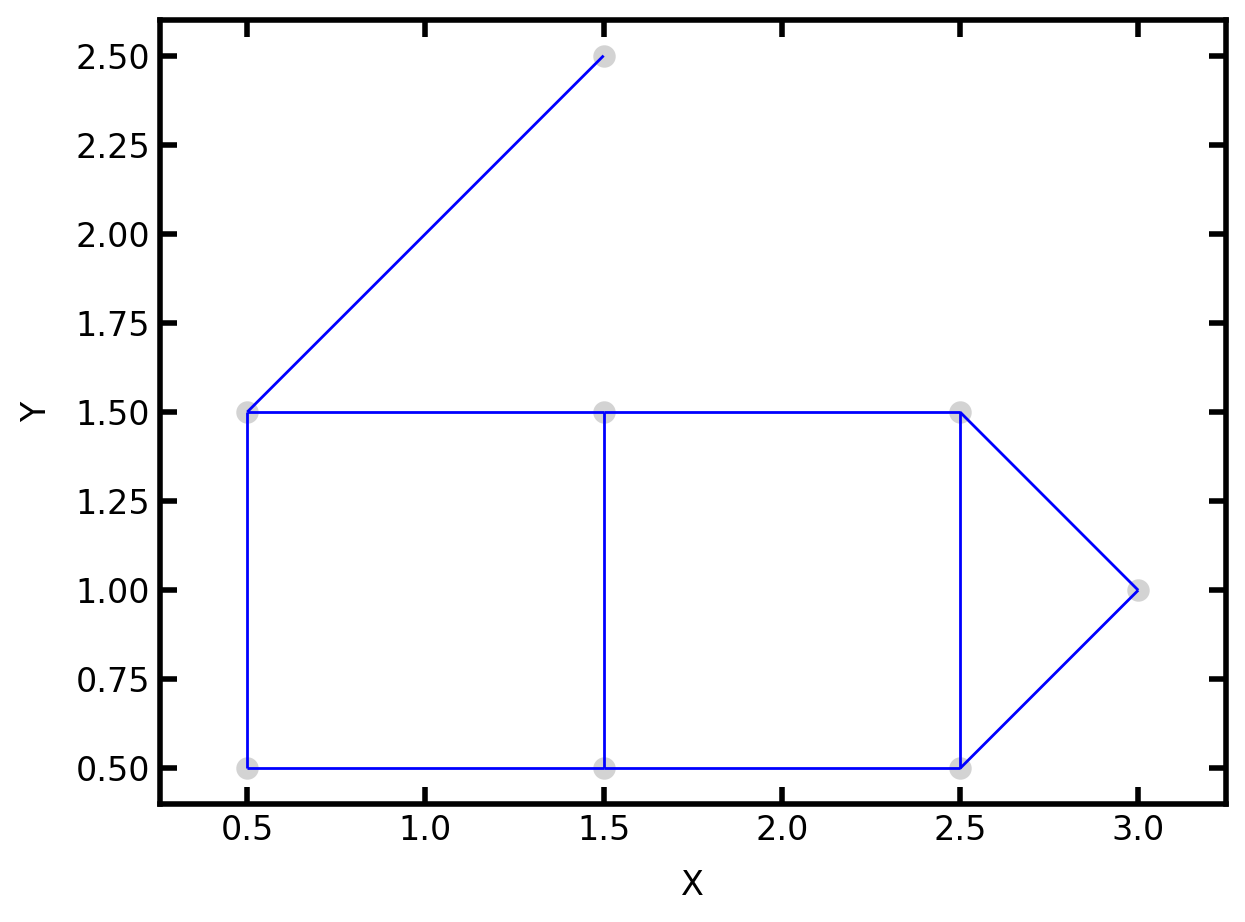

Obviously, in practice we’d like to use OpenPNM’s extend method instead:

pn = op.network.Cubic(shape=[3, 2, 1])
new_pores = [[1.5, 2.5, 0.5], [3, 1, 0.5]]
new_conns = [[1, 6], [4, 7], [5, 7]]
op.topotools.extend(network=pn, coords=new_pores)
op.topotools.extend(network=pn, conns=new_conns)
fig, ax = plt.subplots()
op.visualization.plot_coordinates(pn, c='lightgrey',
                                  markersize=50, ax=ax)
op.visualization.plot_connections(pn, ax=ax);
